8A 10A 13A 16A Electric Car Charging Station Type 2 EV Charge Single Phase Portable EV Charger With Suchko Plug
Characteristics

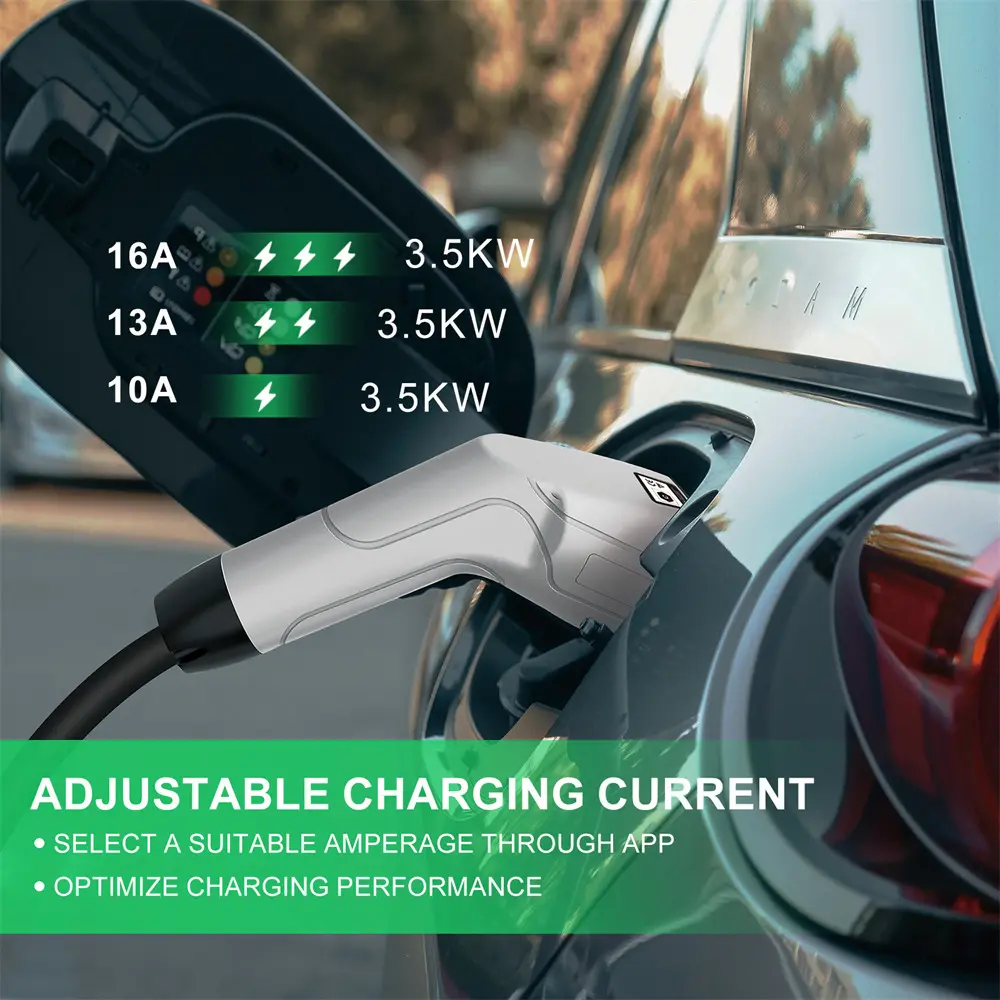

Fast Charging Mode: The adjustable current of our EV charger is 8A/10A/13A/16A, and the output power is 3.6kW, which faster than traditional chargers. You can choose the current according to the battery and vehicle status. Note: The current cannot be switched during charging.
Digital Display Screen: The large screen allows you to clearly monitor the charging status, temperature, rated current, time settings, current settings, and fault situation of the charger, etc.
High compatibility: Our product is compatible with most electric vehicles that comply with IEC 62196-2
Delayed charging design: You can adjust the charging time according to your car need, selecting the delay function,The charging start time can be delayed up to 12 hours, allowing you to choose the appropriate charging time.

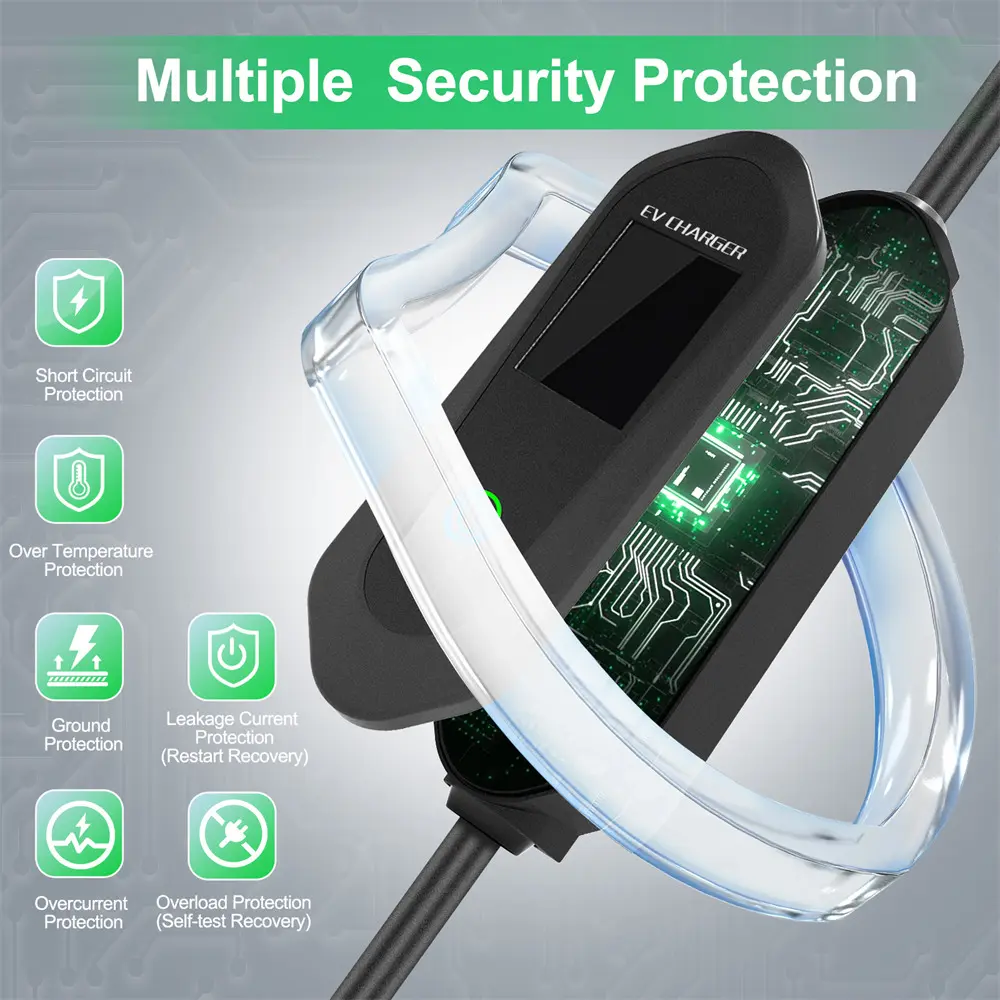

Safety protection: Electric vehicle charging cables have over-current protection, over-voltage protection, over-heat protection and other protection measures to provide safe and reliable guarantee for vehicle charging.
Parameters
Parameters | |
Protection rank |
Charger: IP67; Controller:IP54 |
Fire retardant level |
UL94V-0 |
Rated Current |
8A/10A/13A/16A |
Insulation resistance |
>100M ohm (DC 500V) |
Terminal temperature rise |
<50K |
Withstand voltage |
2000V |
Contact resistance |
≤0.05 MQ |
Coupled insertion force |
>45N>80N |
Operating temperature |
-35℃ to 50℃ |
Meet the standard |
IEC62196 Type2 |
Charging cable |
TPU |
Mechanical life |
No-load plug in/pull out> 10000 times |
Impact resistance |

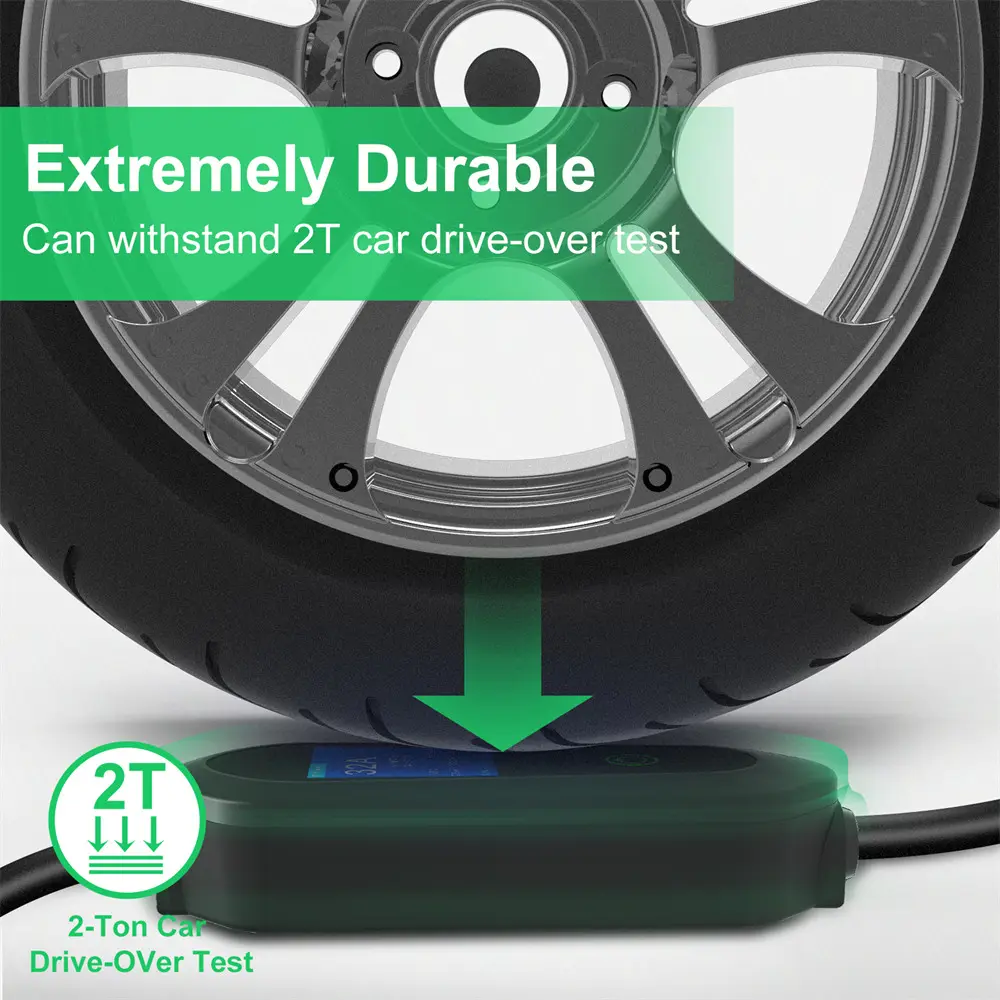

1m drop or 2 Ton vehicle run over pressure |
Product features |
Integrated external mold. excellent waterproof and dustproof pertormance. Flame retardant, Environmental protection, Pressure resistance, Abrasion resistance.lmpact resistance. |
applicantion
