Cheap 3.5KW Type 2 EV Charger Station 5M with LED Indicators, IP67 Waterproof EV Charger, 7KW EV Charging Cable with Carry Bag
Products

Cheap 3.5KW Type 2 EV Charger Station 5M with LED Indicators, IP67 Waterproof EV Charger, 7KW EV Charging Cable with Carry Bag

The portable EV charger can be equipped with different power plugs, such as CEE, Schuko, BS, NEMA, etc., to ensure it is suitable for all markets worldwide.
CHARACTERISTICS
1. Current Range:8A/10A/13A/16A/32A
2. Power supply:110V~250V AC
3. Insulation Resistance:>1000MΩ(DC500V)
4. Withstand Voltage:2000V
5. Contact Resistance:0.5mΩ Max

    product description

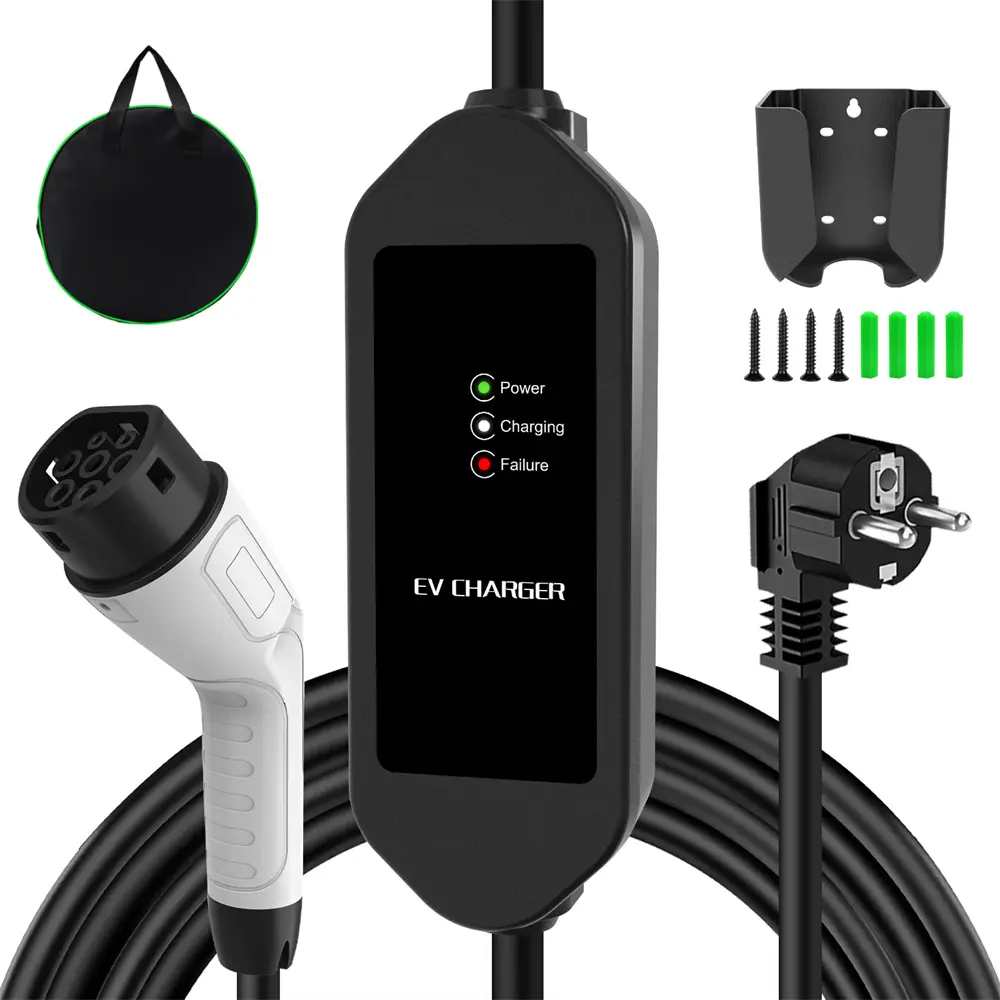

    Package contents: type 2 charger Schuko is equipped with a practical cable set, carry bag and manual (English version). Usually used as a backup charger, when you visit friends, family or go out, you will not get stuck. One year warranty (quality problems).

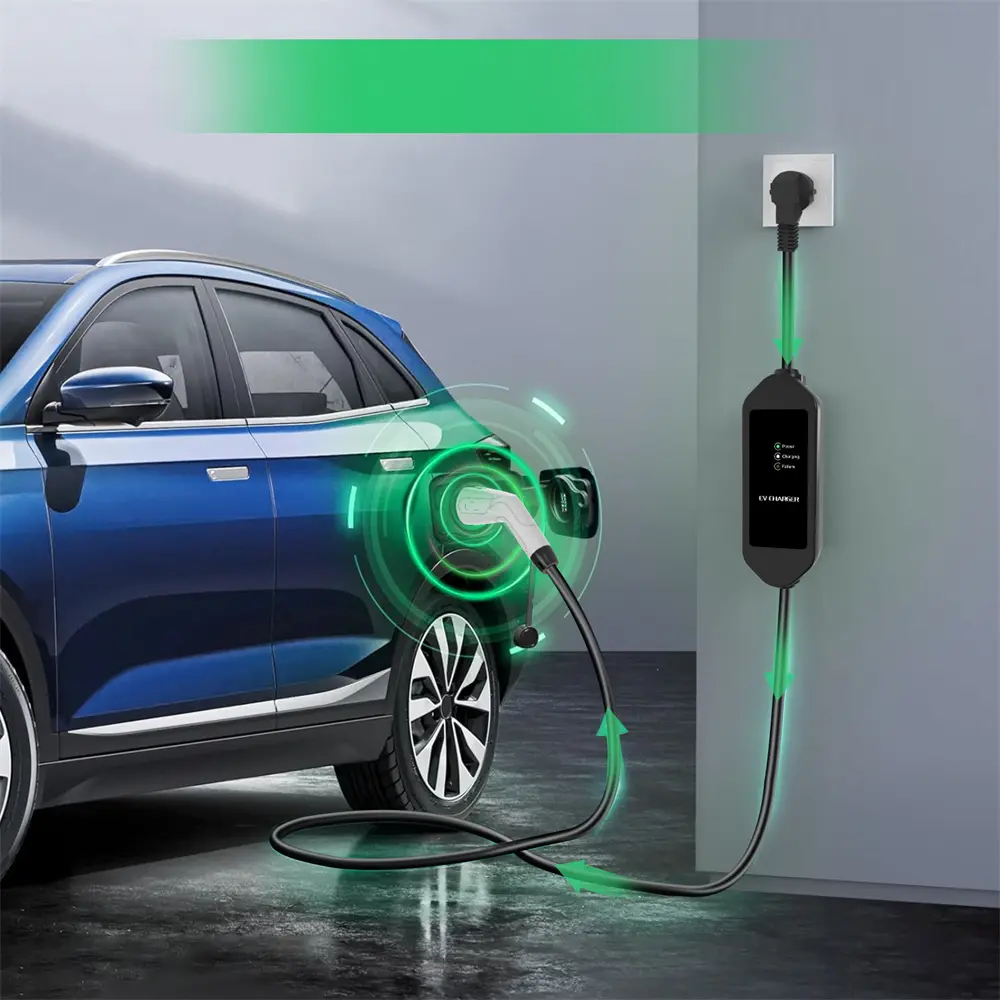

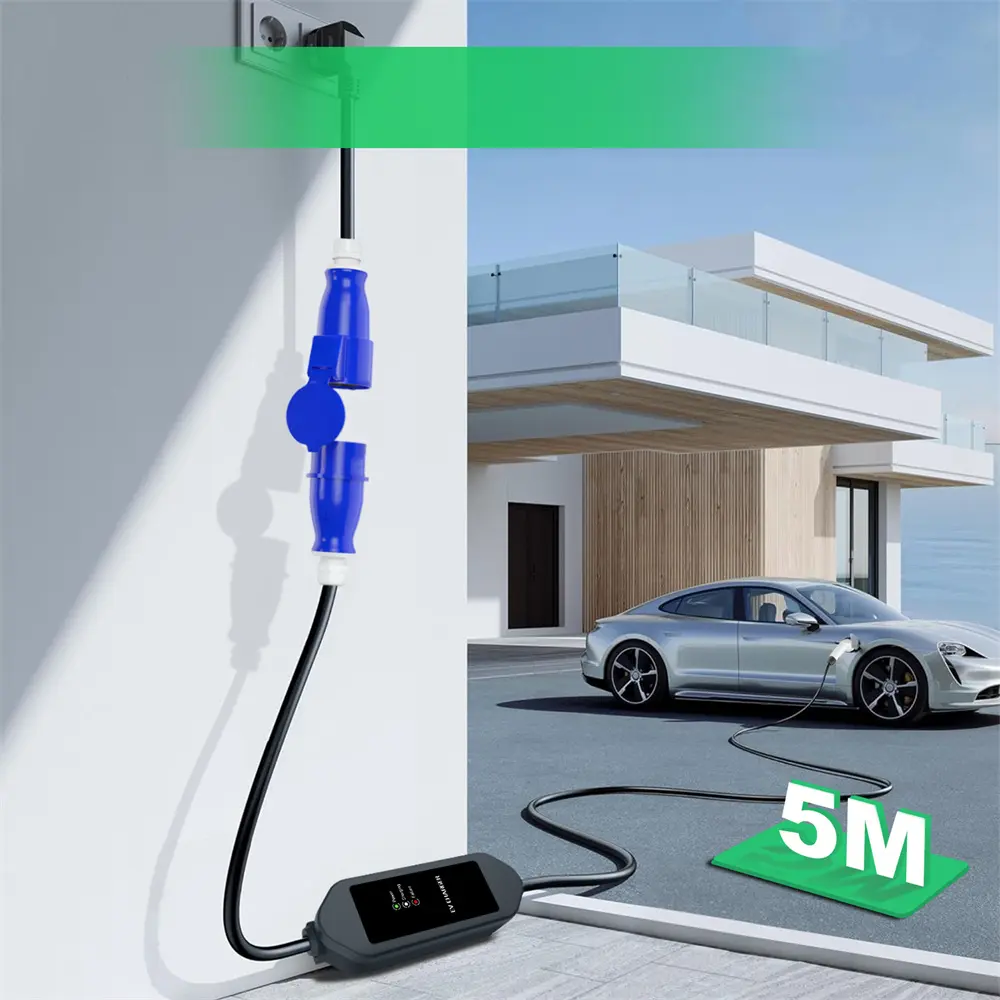

    Easy to use: connect type 2 Schuko charging cable to the electric vehicle, plug and play, meet your needs directly. Three LED indicator lights indicate the charging status, and the 5M is flexible for use in garages and parking lots. The plug is locked after connection to prevent theft and loosening.

    Robust and compact: the EV charging cable type 2 Schuko 16A has a more compact and compact structure, with a thermoplastic plug and control box that allows a drop of 10 m height. The flame retardant type is UL94-V-0, and the plug can withstand 2T pressure without being crushed by tyres. TPU cable is flexible and wear-resistant and is equipped with a binder to prevent tangling.

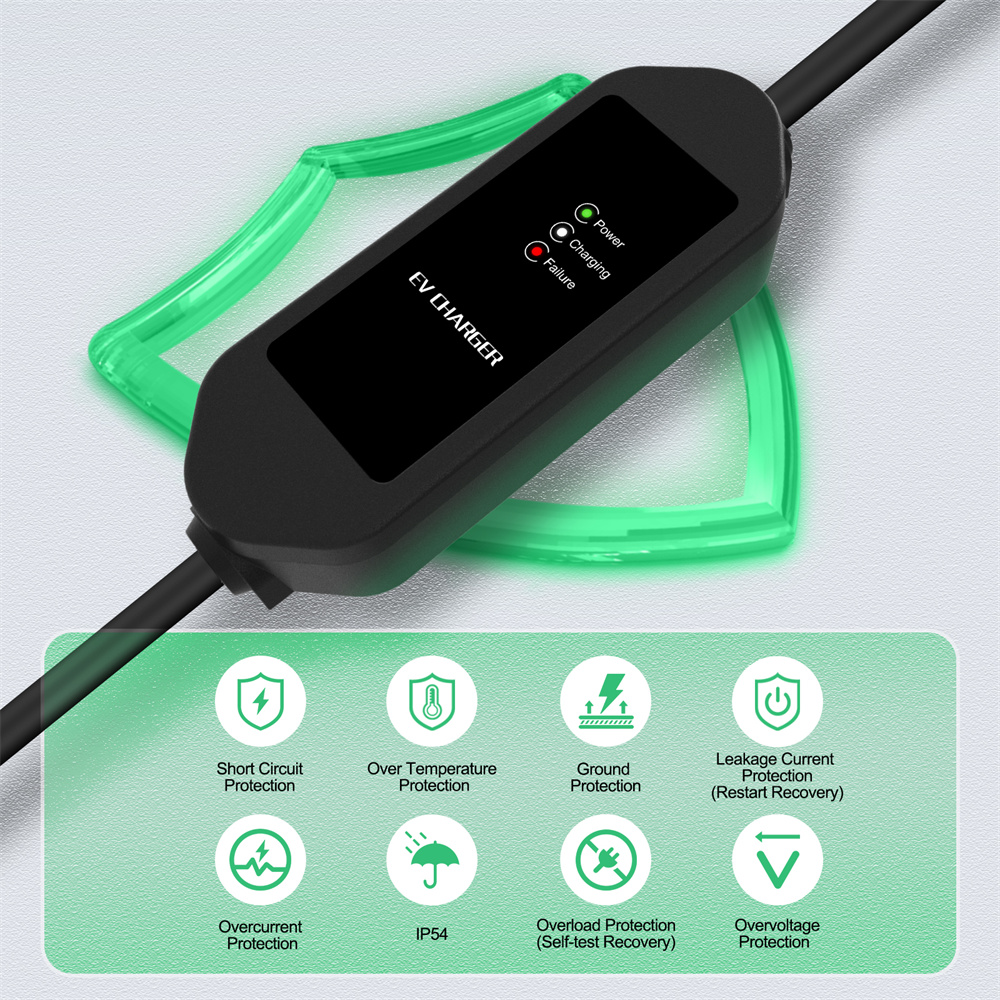

    COMPREHENSIVE PROTECTION: protection against leakage, over-voltage, over-current, over-temperature, grounding, emergency stop, resistance voltage, leakage, overheating, undervoltage, etc. Working temperature: -30℃ -+50℃. IP67 waterproof class, charging cable electric car type 2 Schuko for use outdoors or in damp cellars.

    Compatibility: E car charging cable type 2 Schuko, 7-hole European standard socket, according to IEC 62196-2. Almost compatible with standard European vehicles on the market: Peugeot 308 hybrid, Peugeot 208e/BMW 330e, IX40, i3, mini / VW id4, ID.3, 3/ MG ZS EV, Marvel/Jaguar iPace/Audi Etron / Nissan Leaf blade, Ariya/Opel Mokka E/ Citroën.

      Parameters



      Protection rank Charger: IP67;      Controller:IP54
      Fire retardant level UL94V-0
      Rated Current 8/10/13/16/32A
      Insulation resistance >100M ohm (DC 500V)
      Terminal temperature rise <50K
      Withstand voltage  2000V
      Contact resistance ≤0.05 MQ
      Coupled insertion force  >45N>80N
      Operating temperature  -35℃ to 50℃
      Meet the standard  IEC62196 Type2
      Charging cable  TPU
      Mechanical life  No-load plug in/pull out> 10000 times
      Impact resistance  1m drop or 2 Ton vehicle run over pressure
      Product features    Integrated external mold. excellent waterproof and dustproof pertormance. Flame retardant, Environmental protection, Pressure resistance, Abrasion resistance.lmpact resistance.
