Type 2 Charger
0102030405
32A 3 Phase Smart Charger 22KW AC Home EV Charging Stations Type 2 AC Electric Vehicle Charger with Converter Cables
Features
Quick + no installation required: charging cable CEE 16A type 2 3.5kW,7kW,11 kW with 22 kW adapter, provides a charging solution for households with CEE 22 kW sockets, eliminating the purchase of additional adapters and ensuring higher charging safety.

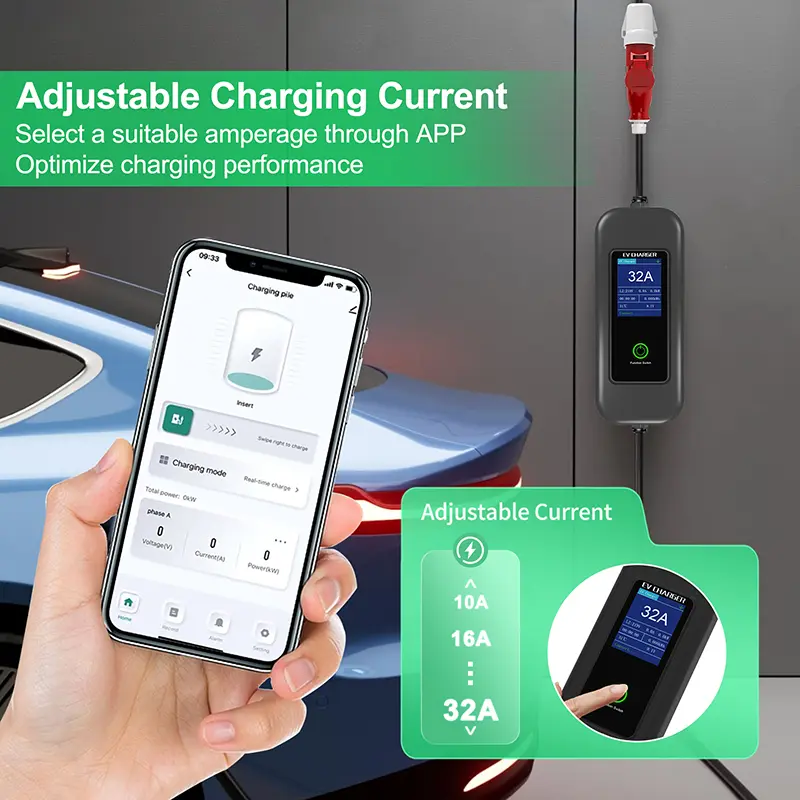

Portable + wall box: plug into the 16A 3-phase CEE socket, choose the current, and it can be used. The adjustable current is 8/10/13/16/20/24/32A, allows pre-charging (maximum 12 hours). The output power is 3.5-22 kW, 440 V. EV charger cee 22KW can be attached in the garage as a wall box for use, or used for travel, work and visits.

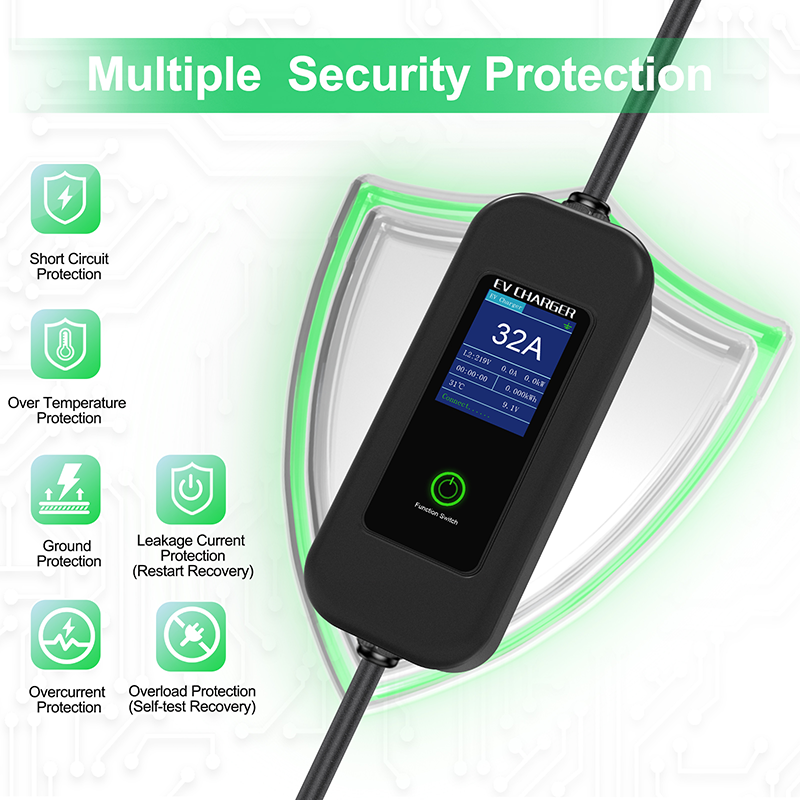

[Intelligent + Safety]: The display screen can detect temperature, real-time voltage, current, power, charging time, total power and set charging time. Mobile wallbox charging station can detect the grounding situation. With current memory function to remember the previous amp selection. Automatic shut-off when full charge to avoid overcharging. After identifying the unstable current, it automatically adjusts the current. The control box automatically reduces the output of the current when it detects overheating, and automatically recovers after all normal.

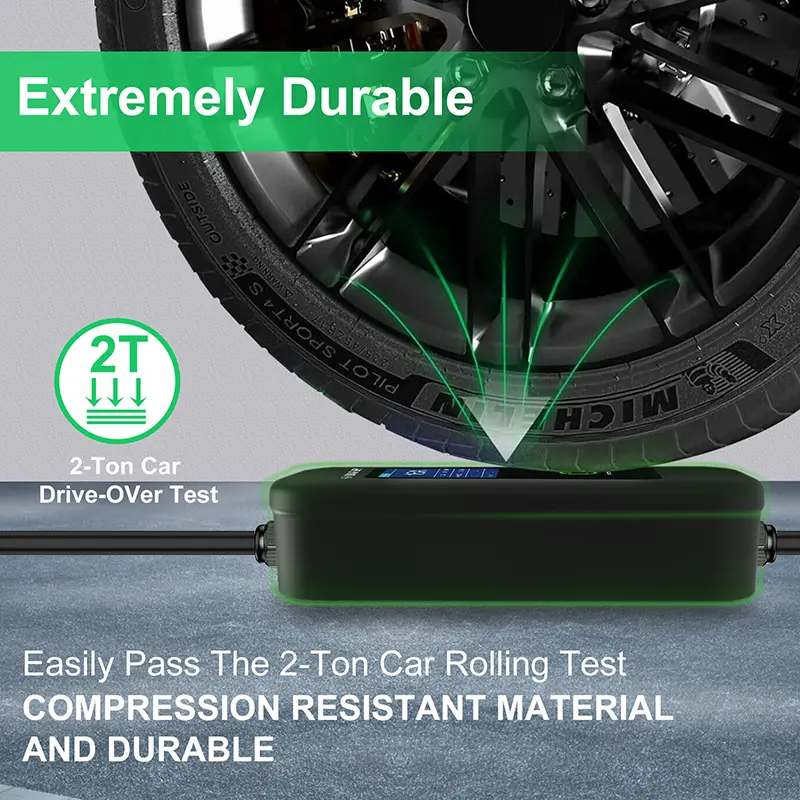

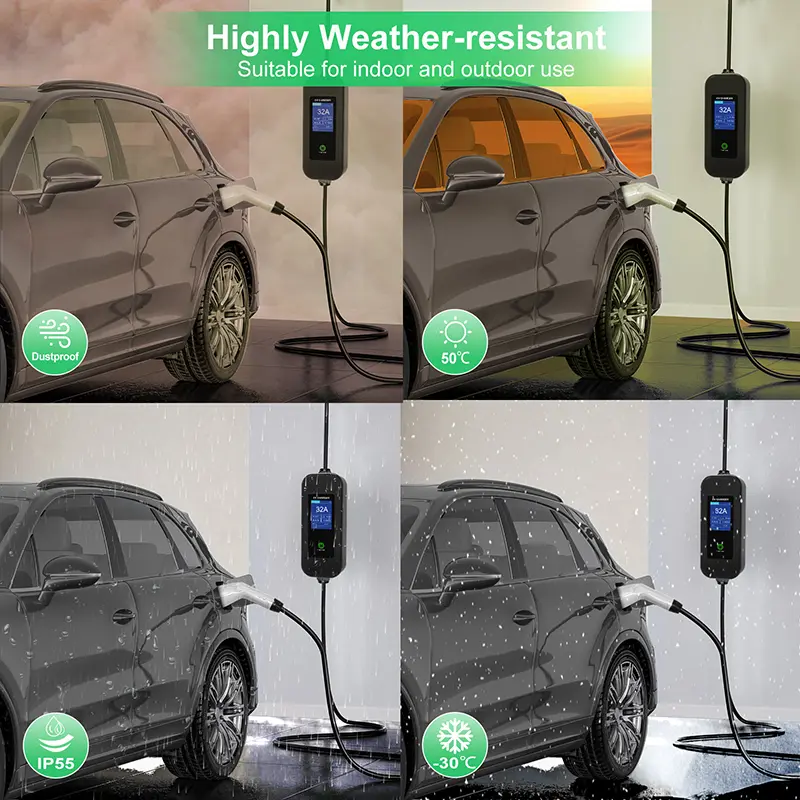

Material + smart chip: LED screen, smart chip and stable electronic board bring stable and safe power to the E-S1mple EV charger. IP55, waterproof and dustproof, prevents damp dust and insects from entering. TPU cables are durable and wear-resistant, with flexible ones that support temperature ranges from -30℃ to 50℃. The plug has undergone pressure testing and supports a drop of 1 metre high with a pressure of 2 tonnes. Even if pressed by a vehicle, it can work normally.
Compatibility: the mobile charging station e car 22 kW is compatible with most vehicles with type 2 plug, Y/Model 3/Spring/Kona/Ioniq 5/ID.3/ID.4/ID.5/e-tron/ZOE/e Golf/Up/Fiat 500 and more. Hybrid and PHEV.
Product Parameters
|
Parameters |
|
|
Protection rank |
Charger: IP67; Controller:IP54 |
|
Fire retardant level |
UL94V-0 |
|
Rated Current |
8/10/13/16/32A |
|
Insulation resistance |
>100M ohm (DC 500V) |
|
Terminal temperature rise |
<50K |
|
Withstand voltage |
2000V |
|
Contact resistance |
≤0.05 MQ |
|
Coupled insertion force |
>45N>80N |
|
Operating temperature |
-35℃ to 50℃ |
|
Meet the standard |
IEC62196 Type2 |
|
Charging cable Jacket |
TPU |
|
Mechanical life |
No-load plug in/pull out> 10000 times |
|
Impact resistance |
1m drop or 2 Ton vehicle run over pressure |
|
Product features |
Integrated external mold. excellent waterproof and dustproof pertormance. Flame retardant, Environmental protection, Pressure resistance, Abrasion resistance.lmpact resistance. |
