Portable Type 2 EV charger with converter leads

The portable Electric Vehicle Charger is versatile, reliable, and designed with the user in mind. Charging provides three phase at 32 amps with a red 5pin CEE male plug, charging an electric car up to 8 times faster than home plugs. Touch button charging status indicators are easy to see even at night, and the 16.4ft cord gives users the flexibility to charge where they need to.

● 3-phase 32A 22KW portable EV charger

● Multi-power supply leads help you charge convenient

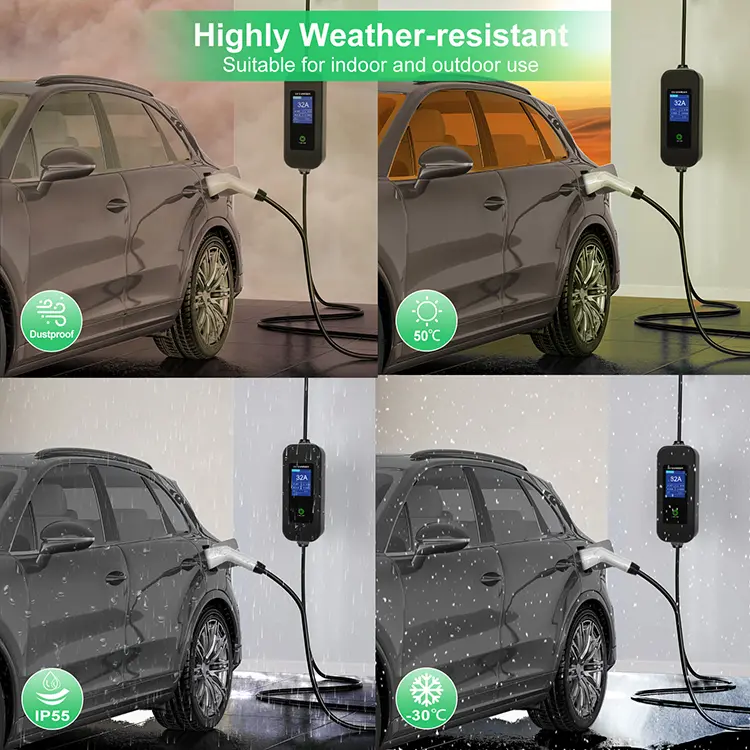

● Highest outdoor protection IP67 Rating

● Connectivity Wifi / Buletooth

● Mobile App IOS & Andriod “Smart life”

● Lockable and ergonomic GBT charging gun

product details

PRODUCT

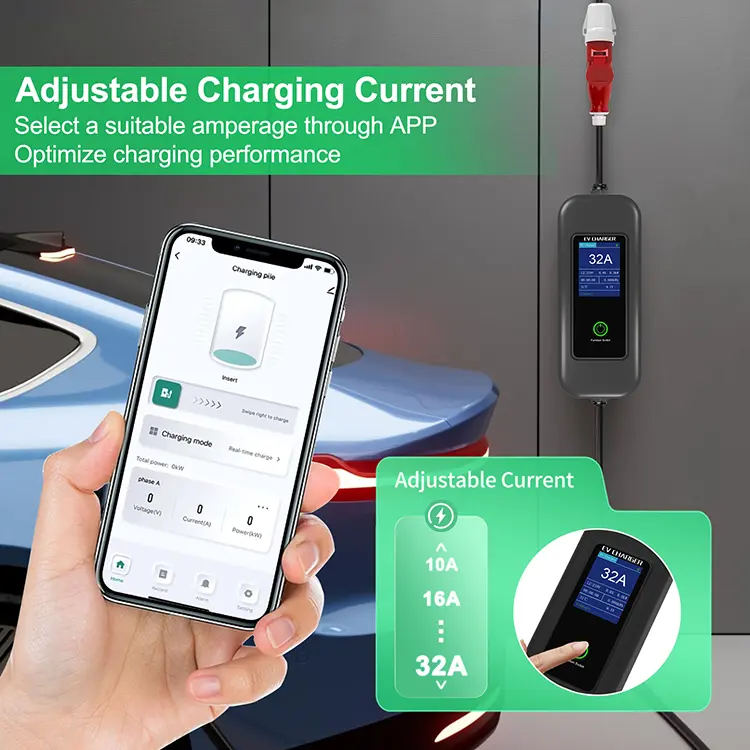

GBT EV portable charger for connecting to a CEE socket (380V) - 1 or 3 phase charging possible - charging current adjustable to 6A, 8A, 10A, 13A ,16A or 32A - In addition, the start time and charging time can be set

2.8inch display - mobile charging station electric car shows set charging current, current charging current, current charging power, charged energy, supply voltage in V, time setting, charging indicator and status display

Compatible with all electric cars and plug in hybrids with GBT plug such as MG/ e-Up, ID.3, ID.4 / Zoe / Kono / Fortwo / 500 e, 500 / i3, X3 / A4, S4, Rs4, A6, S6, Rs6, e-tron, Q. 5 / GLK, GLC / Kuga / Leon / Yaris and many more

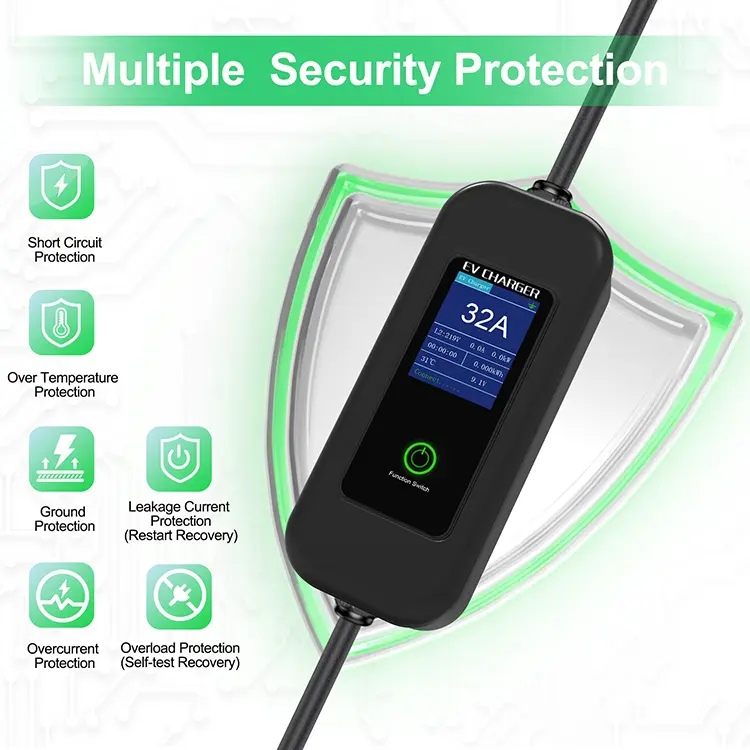

Safe charging thanks to integrated RCD AC 30 mA and DC 6 mA, surge, undervoltage, overcharge and overheating protection as well as fault current detection, PE error protection, overrun protection, flammability class UL94V-0 and protection class IP67 (waterproof)

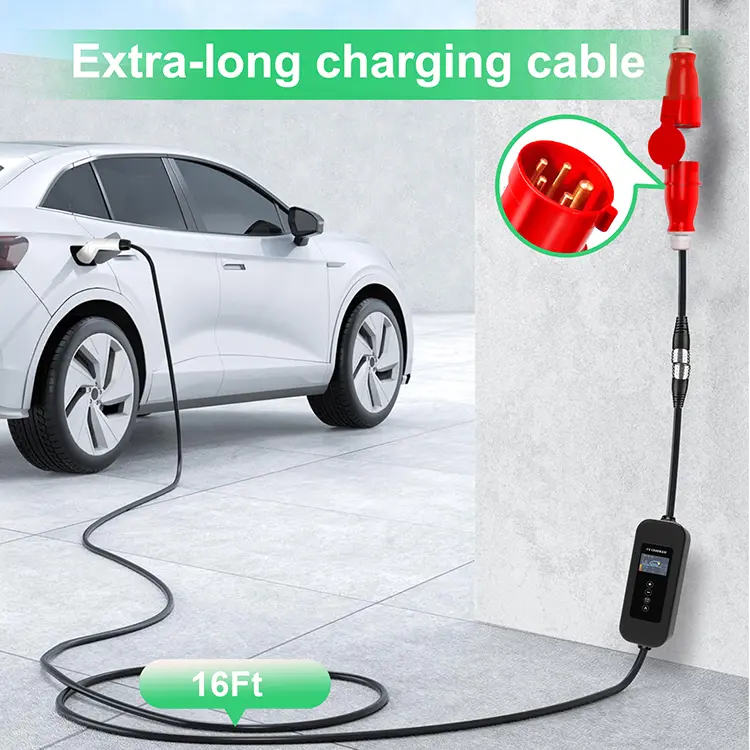

Bag – thanks to the large bag, the 5 metre long 22 kW mobile charging station 32 A can be quickly and easily stored and transported

Parameters

Parameters
Input cable	0.3 meters
Output cable	4.5 meters
Protection rank	Charger: IP67; Controller:IP55
Fire retardant level	UL94V-0
Rated Current	8A/10A/13A/16A/32A
Insulation resistance	>1000MΩ (DC 500V)
Withstand voltage	2000V
Operating temperature	-35℃ to 50℃
PCB protect temperature	+80℃
Meet the standard	Cars with Chinese specifications
Material of charging cable	TPU
Product features	Integrated external mold. excellent waterproof and dustproof pertormance. Flame retardant, Environmental protection, Pressure resistance, Abrasion resistance.lmpact resistance.
