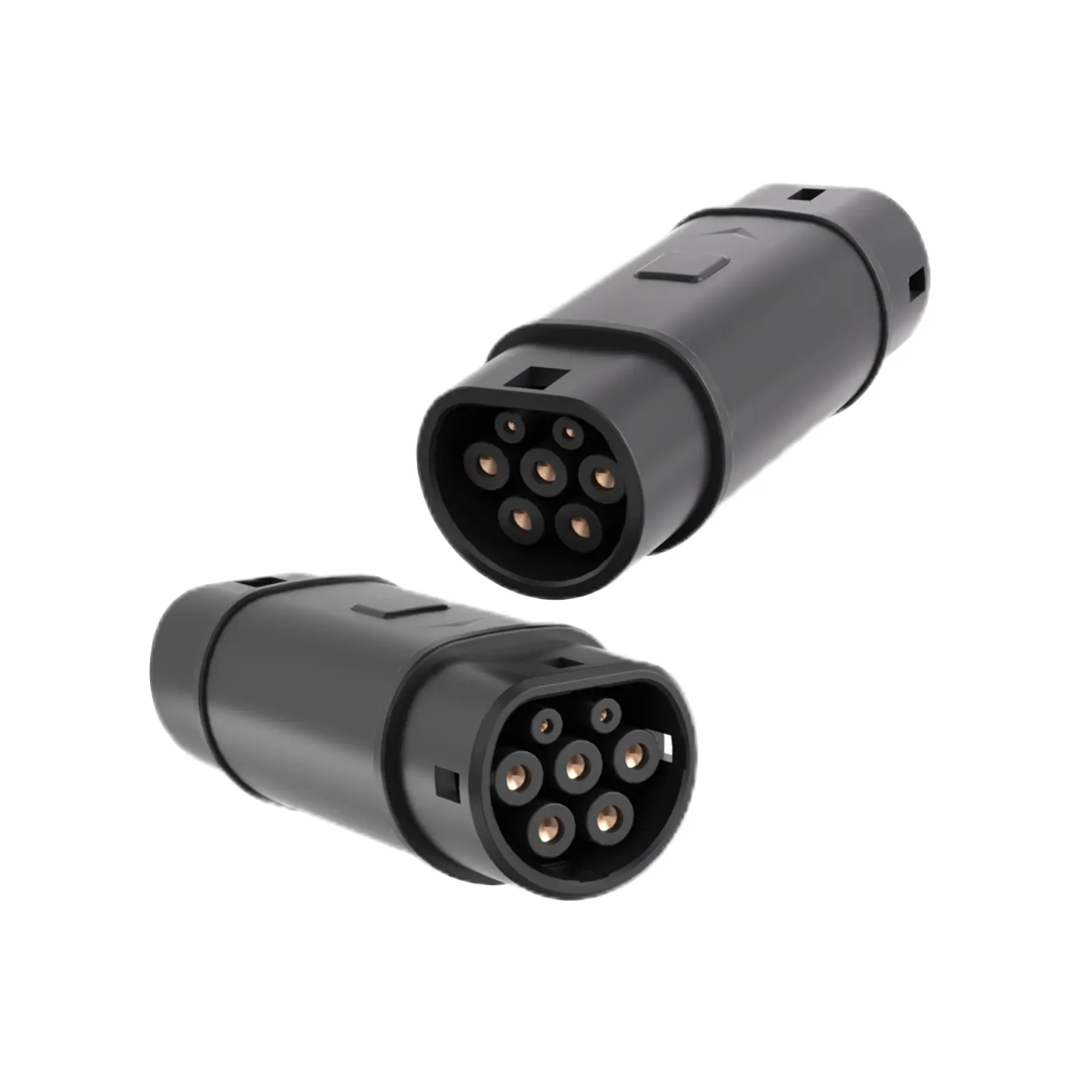

Type 2 to Gbt EV Adapter,1Phase 3Phased Type 2 to Gbt Conversion Connector,Electric Vehicle Charging Adapter IEC 62196 to GB/T EV Charging Adapter
Features
Advanced Compatibility This adapter allows for effective connection of vehicles with GB/T ports to type 2 chargers and supports charging power up to 32A 22kW. It is compatible with Type 2 high-performance wall charging stations, target chargers and mobile plugs, providing a convenient and advanced charging solution.
Portability and durability The Type 2 to GB/T charging adapter is compact and robust, making it an ideal accessory for charging on the go. Easy to carry and store in your vehicle, ensures fast and effortless charging of your electric vehicle wherever you are.
SAFETY CERTIFICATION The safety of this Type 2 to GB/T adapter is guaranteed. It has passed FC tests and is CE, TUV and RoHS certified, so you feel completely safe when using it.

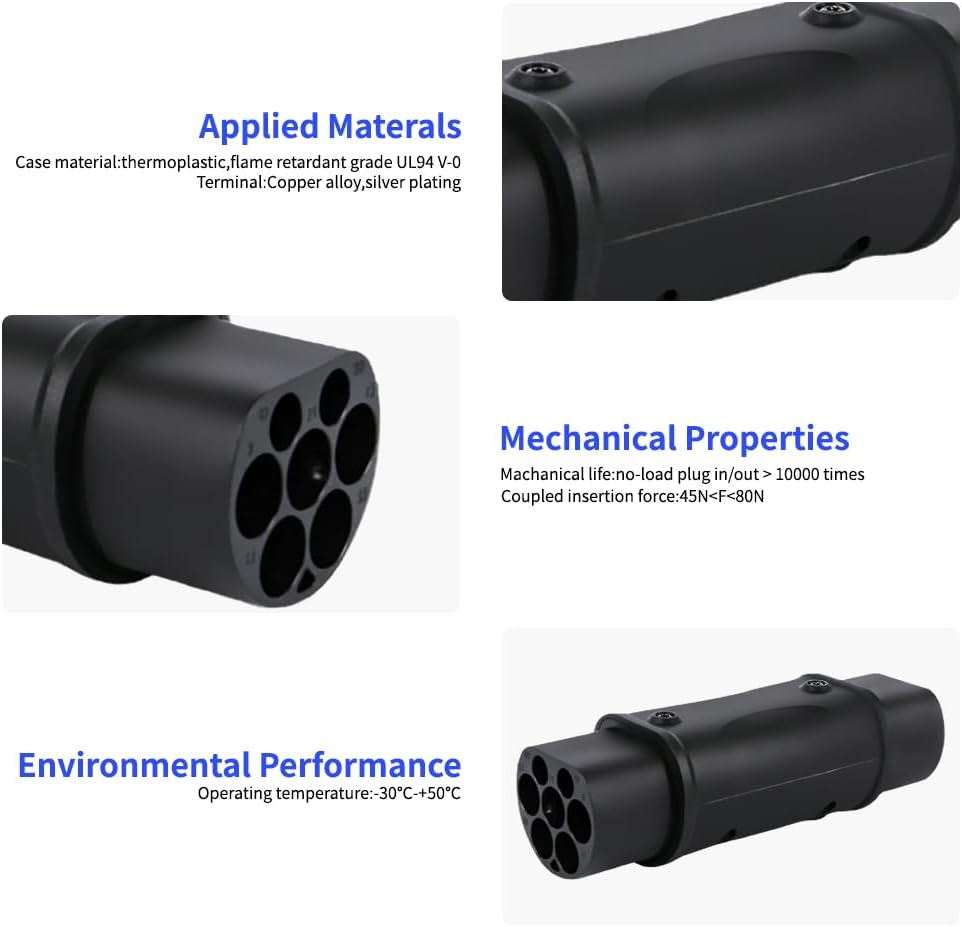

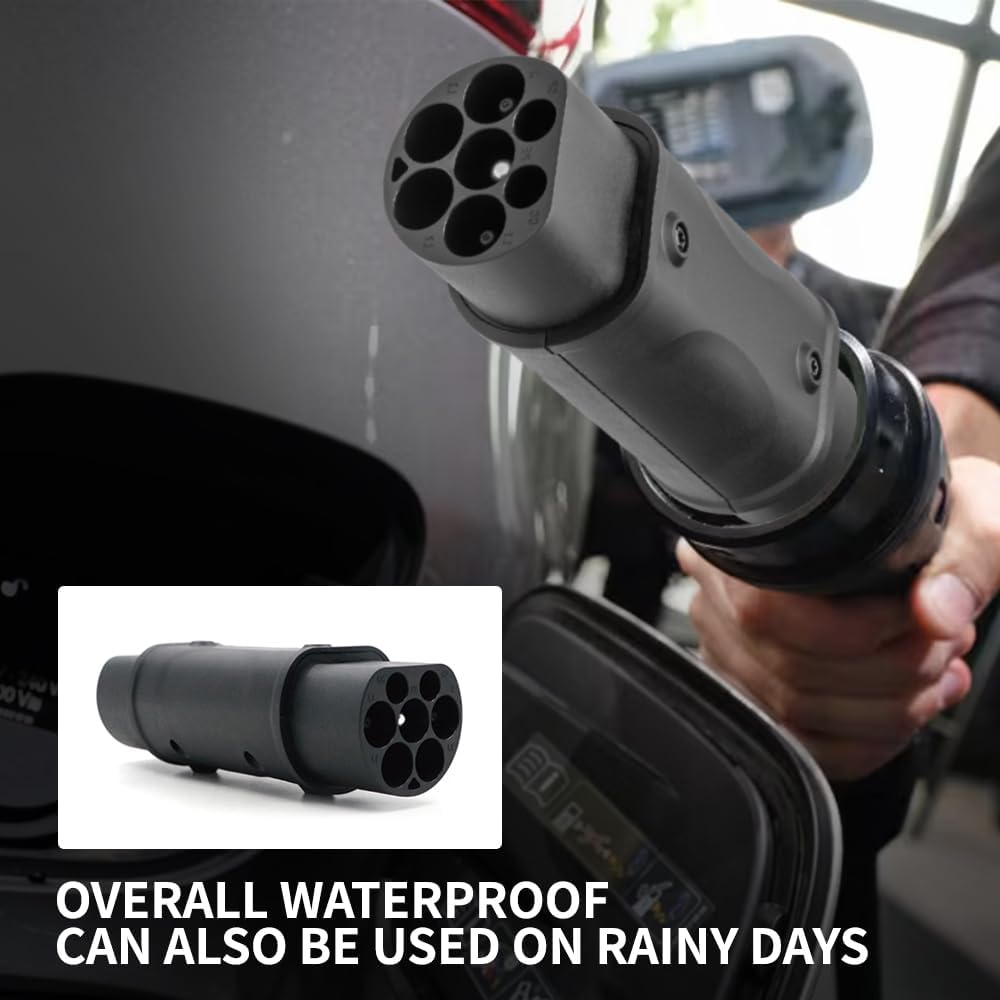

High performance and reliability. Made of high quality thermoplastic materials, this adapter works effectively in a wide temperature range from -30°C to 50°C. It has a fire resistance rating UL94-V-0 and IP54 waterproof protection, so it can be used safely even in the rain.

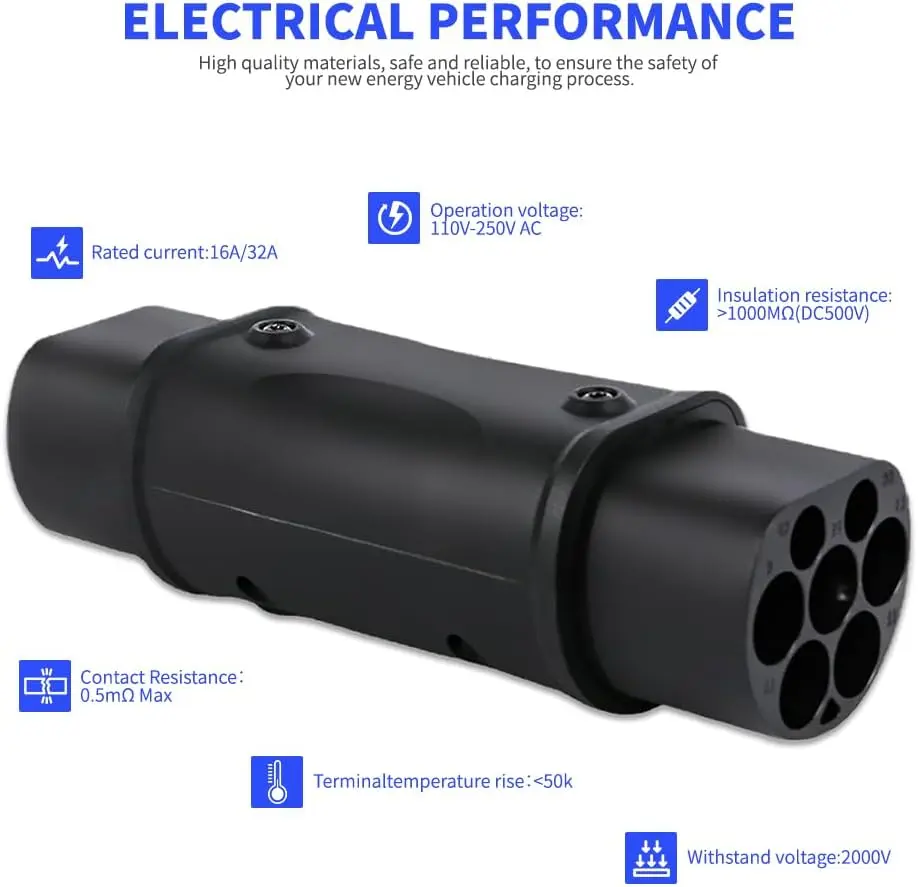

Product Parameters
| Protection rank | IP54 |
| Fire retardant level | UL94V-0 |
| Rated Current | 8A/10A/13A/16/32A |
| Insulation resistance | >100M ohm (DC 500V) |
| Terminal temperature rise | <50K |
| Withstand voltage | 2000V |
| Contact resistance | ≤0.05 MQ |
| Coupled insertion force | >45N>80N |
| Operating temperature | -35℃ to 50℃ |
| Meet the standard | IEC62196 Type2 |
| Charging cable | NO |
| Mechanical life | No-load plug in/pull out> 10000 times |
| Impact resistance | 1m drop or 2 Ton vehicle run over pressure |
| Product features | Integrated external mold. excellent waterproof and dustproof pertormance. Flame retardant, Environmental protection, Pressure resistance, Abrasion resistance.lmpact resistance. |
Product Advantage
